Pulling engine out. Which is easier: engine alone, or with transmission attached?

Discussion in 'Technical' started by scooper77515, Feb 7, 2013.

  1. scooper77515

    scooper77515 No current projects.

    Joined:
    Jun 30, 2004
    Messages:
    14,672
    Likes Received:
    73
    Trophy Points:
    233
    Location:
    Issaquah/Grand Coulee, WA
    Vehicle:
    Fresh out of Mavericks
    I have never pulled both out together.

    I have the option to do either/or, and if one is easier, I will definitely do that one.

    If I pull the engine only, I will be FORCED to swap out converters before I reassemble...:biglaugh:

  2. Dave B

    Dave B I like Mavericks!

    Joined:
    Mar 9, 2002
    Messages:
    16,931
    Likes Received:
    215
    Trophy Points:
    347
    Location:
    Parts Unknown......
    Vehicle:
    3 Grabbers

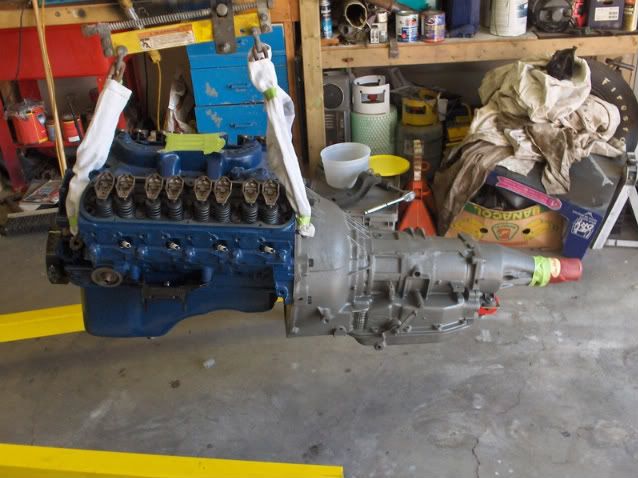

    Pull it all together, it's much easier.
    [​IMG]

    Last edited: Feb 7, 2013
  3. Craig Selvey

    Craig Selvey Indiana State Rep - MCCI

    Joined:
    Mar 9, 2002
    Messages:
    18,304
    Likes Received:
    1,366
    Trophy Points:
    878
    Location:
    Albany, Indiana
    Vehicle:
    1972 Maverick Grabber - Color: Orange Also, 1976 Ford Maverick 4-door, 1977 Mercury Comet 2-door.
    " "
    Dittos to that.

  4. scooper77515

    scooper77515 No current projects.

    Joined:
    Jun 30, 2004
    Messages:
    14,672
    Likes Received:
    73
    Trophy Points:
    233
    Location:
    Issaquah/Grand Coulee, WA
    Vehicle:
    Fresh out of Mavericks
    OK.

    And thanks for the picture...it shows a good mounting point.

    Can I do it alone, or do I need a second pair of hands?

    I just took it for the last drive ever, with manual steering. Wife and I took it around the neighborhood, and just warmed it up a little. Next drive might feel a little different...:D

    Put it back into the garage backwards, so I have better access to the front end while I start cutting all that old manual stuff and shock towers out!!!:yahoo:

    Last edited: Feb 7, 2013
  5. ford84stepside

    ford84stepside Lone Wolf

    Joined:
    Nov 25, 2004
    Messages:
    4,038
    Likes Received:
    16
    Trophy Points:
    132
    Location:
    Berry Alabama
    Vehicle:
    1947 Lincoln Zephyr Coupe
    Pull it all together, but be ready for a flood of transmission fluid unless you have a spare yoke or plug to put in!

    I used one of those carb plates when I R&R the 460 in the motor home. I figure if one of those will hold a 460, then a 302 will be a piece of cake.....

  6. scooper77515

    scooper77515 No current projects.

    Joined:
    Jun 30, 2004
    Messages:
    14,672
    Likes Received:
    73
    Trophy Points:
    233
    Location:
    Issaquah/Grand Coulee, WA
    Vehicle:
    Fresh out of Mavericks
    Yeah, in the past, I just left the yoke duct taped in, and disconnected at the u-joint. Duct tape around the joint to hold all the caps and bearings in.

  7. Jsarnold

    Jsarnold Senior Member

    Joined:
    Oct 29, 2008
    Messages:
    2,842
    Likes Received:
    4
    Trophy Points:
    102
    Location:
    Raleigh, North Carolina
    Vehicle:
    '72 Sprint
    Pull them together but be prepared to stand it on end to clear the radiator support.

    I use a floor jack with the handle pointed to the rear of the car to catch the tail shaft and roll it back as the engine tilts into place.

    There's a lot less jumping up and down if you can have a helper under the car manipulating the floor jack and watching how things are going down there.


    Attached Files:

  8. Dave B

    Dave B I like Mavericks!

    Joined:
    Mar 9, 2002
    Messages:
    16,931
    Likes Received:
    215
    Trophy Points:
    347
    Location:
    Parts Unknown......
    Vehicle:
    3 Grabbers
    For the "Northeners" I use a Tim Hortons cup on the transmission to stop the fluid flow...
    It's nice to have someone help you, since Mavericks can be tricky...

  9. WinterBlue71

    WinterBlue71 Factory Painted Roof

    Joined:
    Mar 1, 2012
    Messages:
    984
    Likes Received:
    100
    Trophy Points:
    228
    Garage:
    2
    Location:
    SC
    Vehicle:
    71 Mav 2dr, 73 Gran Torino SW, 94 Mark VIII, Anglia Ex-NHRA vintage racer
    I pulled my 200/C4 out of my parts car and put it back in my other Maverick all by myself. Pulled all at once as well.

  10. doncomfort

    doncomfort MCCI Membership Director

    Joined:
    Apr 16, 2012
    Messages:
    1,289
    Likes Received:
    66
    Trophy Points:
    147
    Location:
    chillicothe oh
    Vehicle:
    74 maverick convertible, 72 Sprint
    Me too, THREE times! Im sure a V8 is a little tougher and tighter tho.

  11. scooper77515

    scooper77515 No current projects.

    Joined:
    Jun 30, 2004
    Messages:
    14,672
    Likes Received:
    73
    Trophy Points:
    233
    Location:
    Issaquah/Grand Coulee, WA
    Vehicle:
    Fresh out of Mavericks
    The V8, I am sure, is a bit tighter. I have pulled and replaced it twice, and had help. I think I could do it myself, and I hooked up the transmission myself.

    But both together, not so sure.

  12. Dave B

    Dave B I like Mavericks!

    Joined:
    Mar 9, 2002
    Messages:
    16,931
    Likes Received:
    215
    Trophy Points:
    347
    Location:
    Parts Unknown......
    Vehicle:
    3 Grabbers
    I've done it myself, but it's always nice to have a second set of hands, just in case.
    My engine hoist always hit the lower control arms, with the weight of the engine in the car, so I put a piece of 2X4 under each front tire, to give me some added height.
    Just get that engine out ASAP!! and get going on that front suspension!! I'm holding off ordering mine till I finish the body work on my car, but this may push me over the edge...

  13. mojo

    mojo "Everett"- Senior Citizen Supporting Member

    Joined:
    Jul 20, 2009
    Messages:
    5,272
    Likes Received:
    833
    Trophy Points:
    513
    Garage:
    1
    Location:
    Chicago
    Vehicle:
    73 Comet GT-302 4bl
    Good to know... Been many years since I pulled an engine. I may have to do mine this year.

  14. Craig Selvey

    Craig Selvey Indiana State Rep - MCCI

    Joined:
    Mar 9, 2002
    Messages:
    18,304
    Likes Received:
    1,366
    Trophy Points:
    878
    Location:
    Albany, Indiana
    Vehicle:
    1972 Maverick Grabber - Color: Orange Also, 1976 Ford Maverick 4-door, 1977 Mercury Comet 2-door.

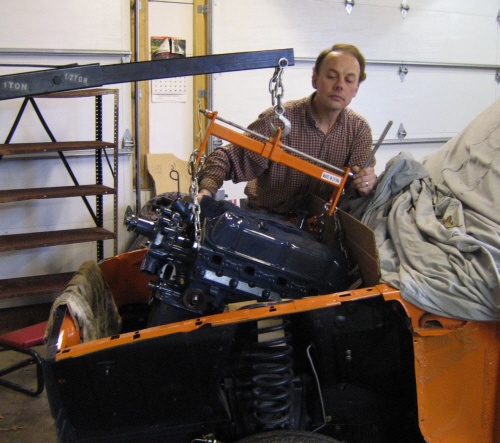

    You can do it by yourself, or have a second person to at least take pictures. :D

    [​IMG]


    [​IMG]

  15. 71gold

    71gold Frank Cooper Supporting Member

    Joined:
    Apr 9, 2002
    Messages:
    26,586
    Likes Received:
    2,933
    Trophy Points:
    978
    Garage:
    1
    Location:
    MACON,GA.
    Vehicle:
    '73 Grabber
    that...leveler...is a must...and extend the arm on the hoist before you pick the engine up...:yup:
    I find it easier to roll the car back from under the engine...less rocking of the motor/transmission.

    Last edited: Feb 7, 2013
