EXPLODED VIEWS
maverickgrabber.com


Body/Chassis

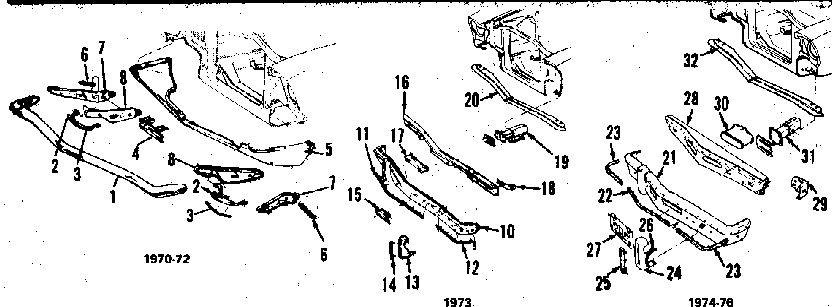

Front bumpers all years

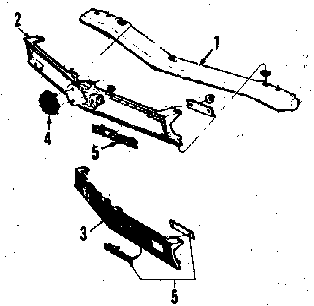

Front grille

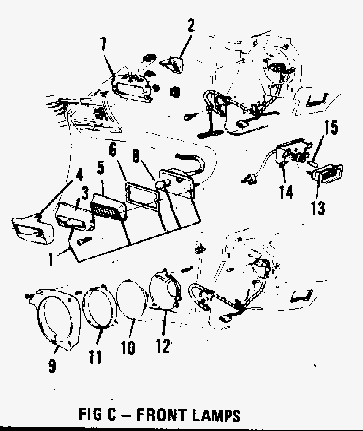

Front headlamps

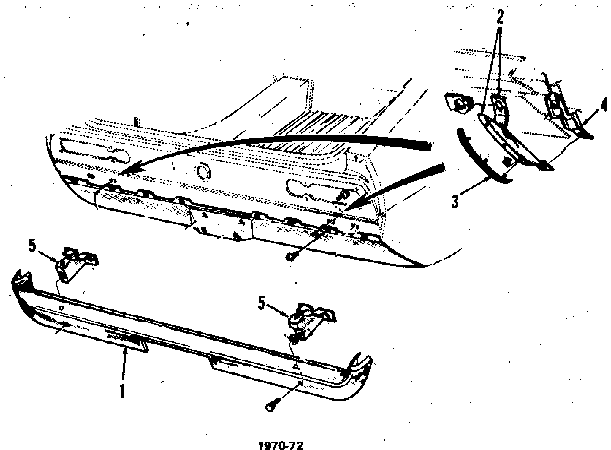

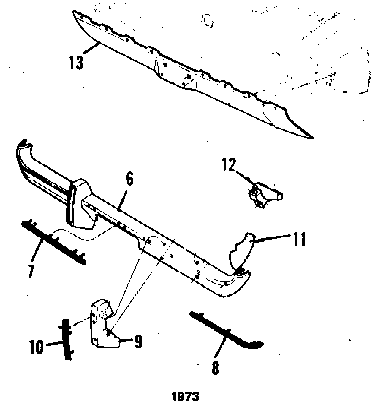

Rear bumper 1970-1972


Rear bumper 1973

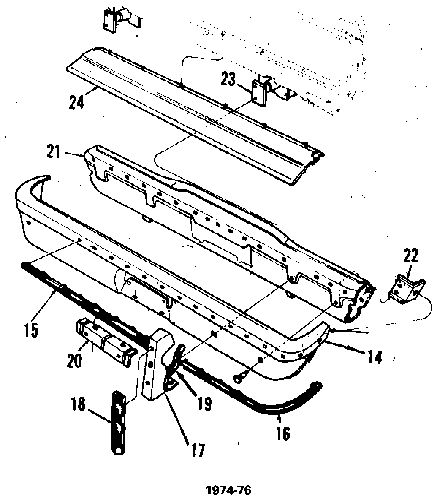

Rear bumper 1974-1977

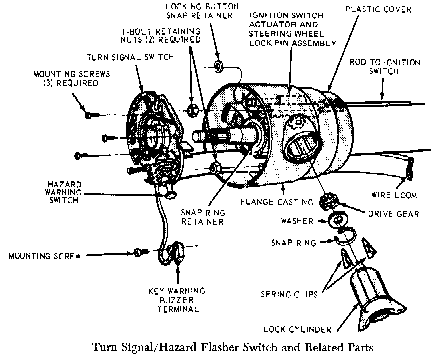

Column view

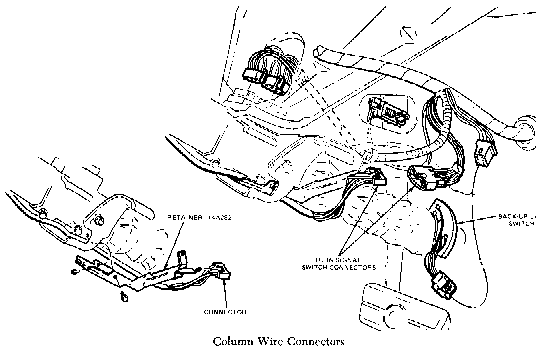

Harness under steering column

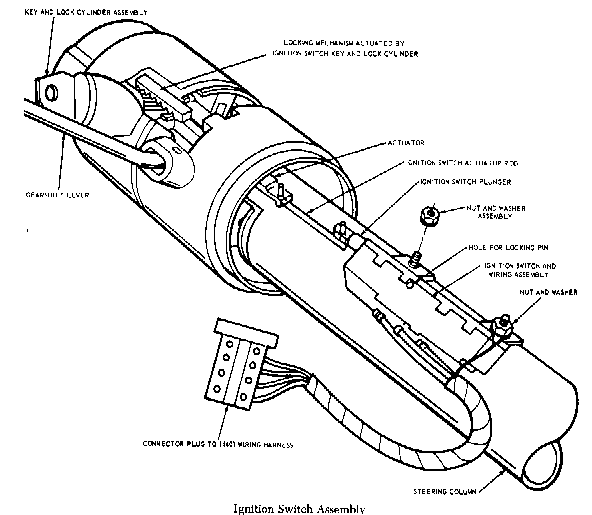

Ignition switch

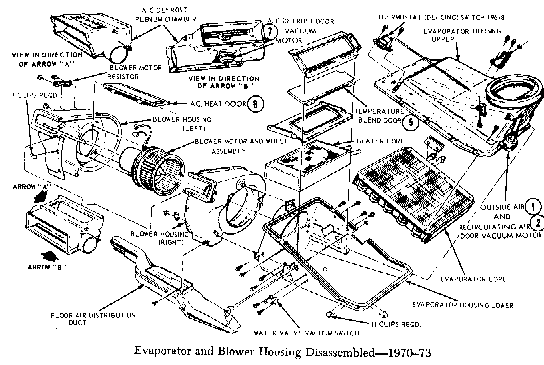

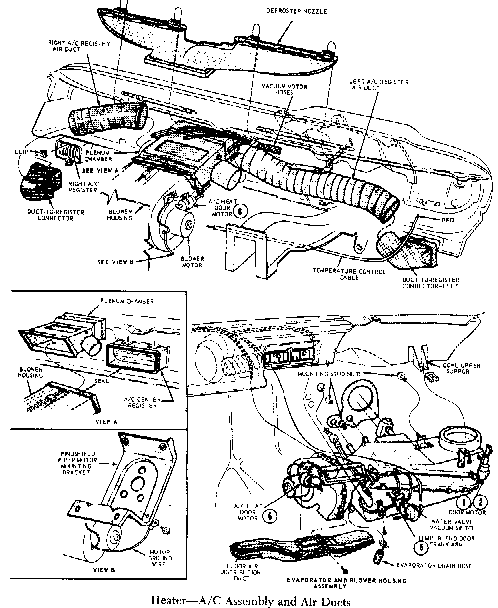

Heater box w/air #1


Heater box w/air #2

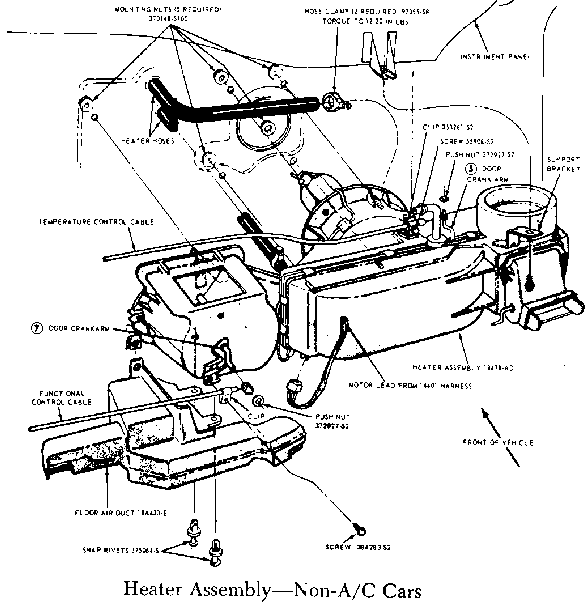

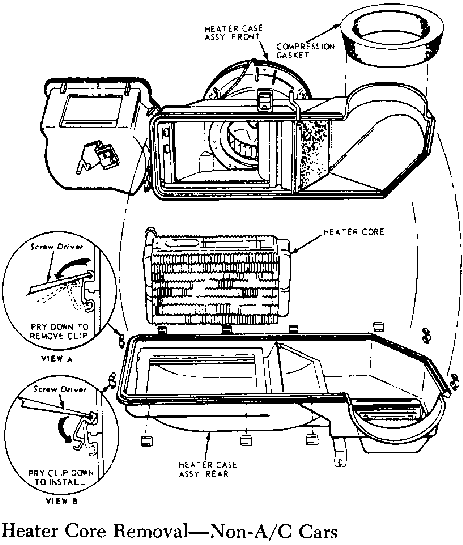

Heater box w/o air #1


Heater box w/o air #2

Driveline/Suspension

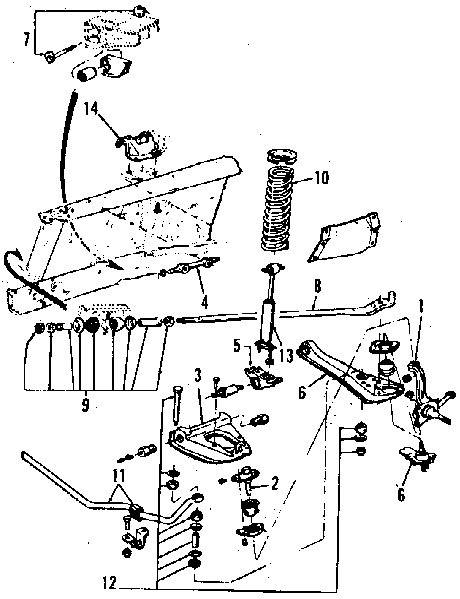

Front suspension

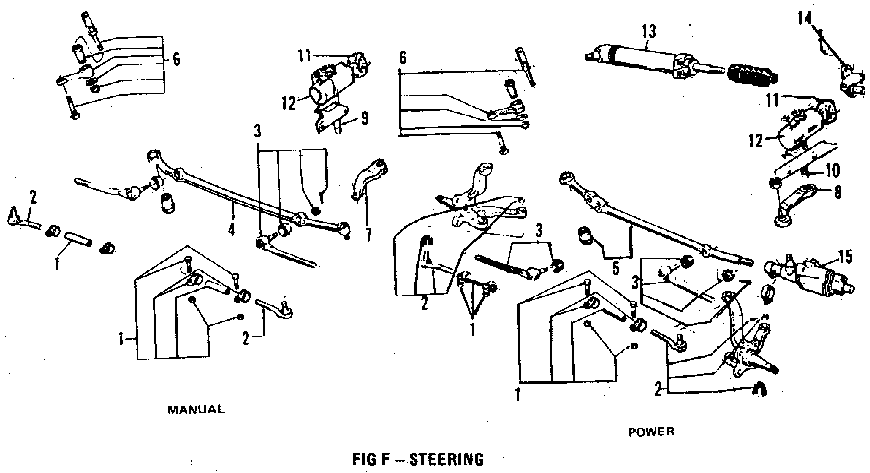

Steering - manual and power


302 V8 exploded view

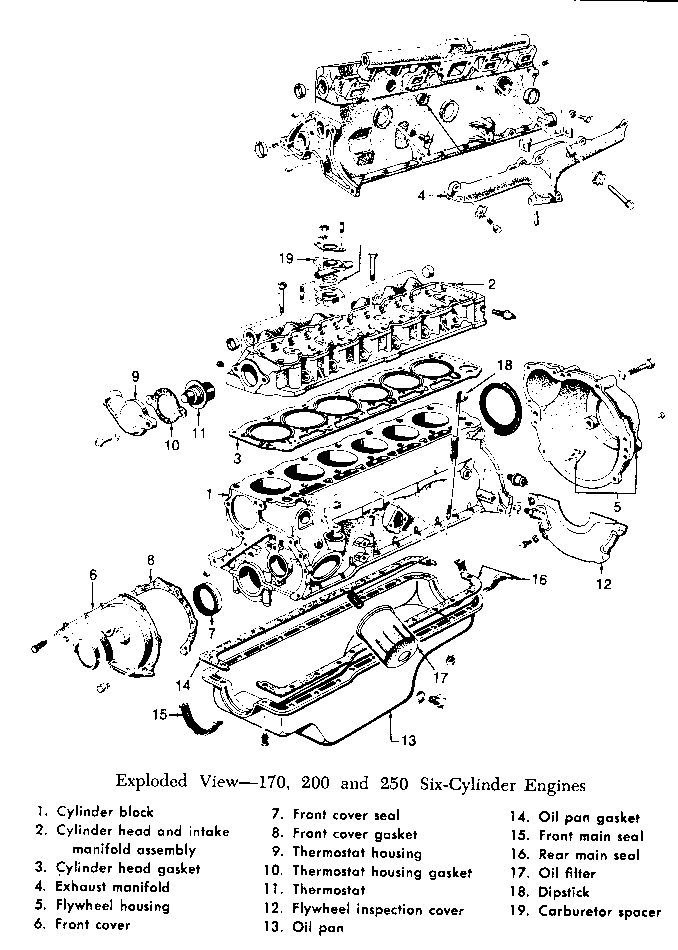

6 cyl exploded view

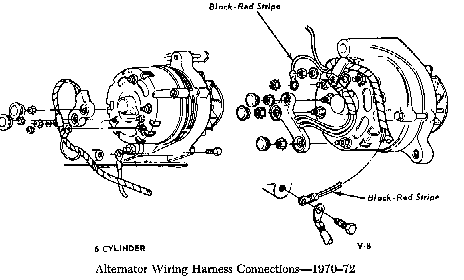

Alternator view 70-2

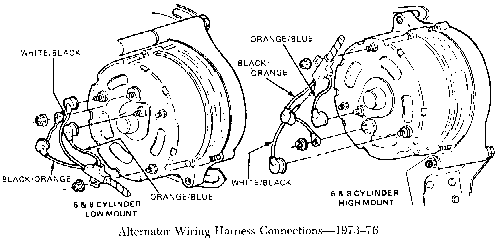

Alternator view 73-7

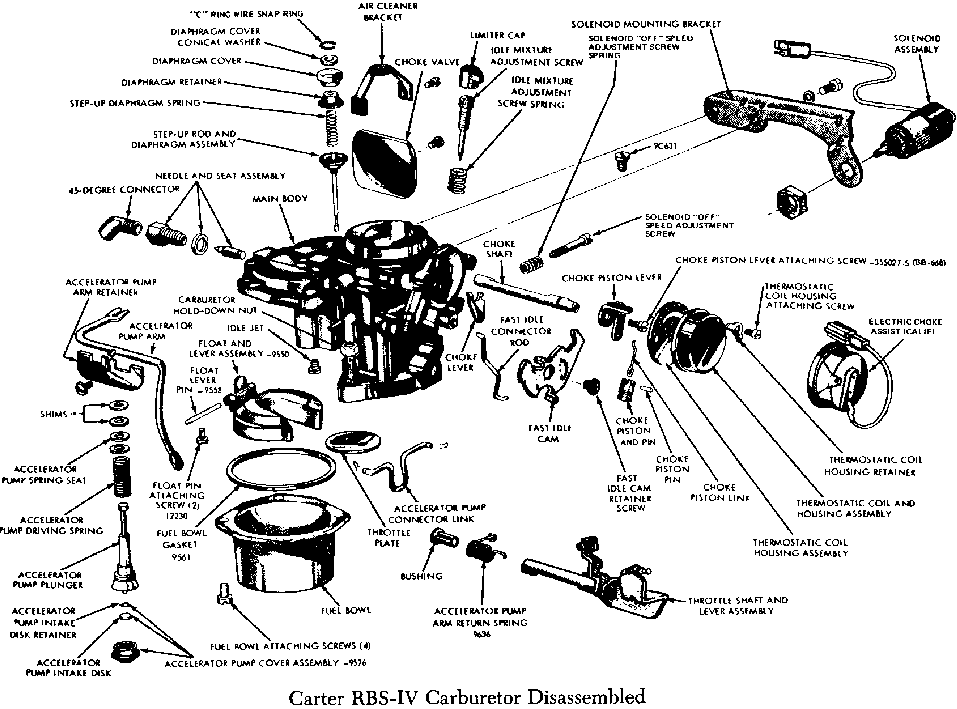

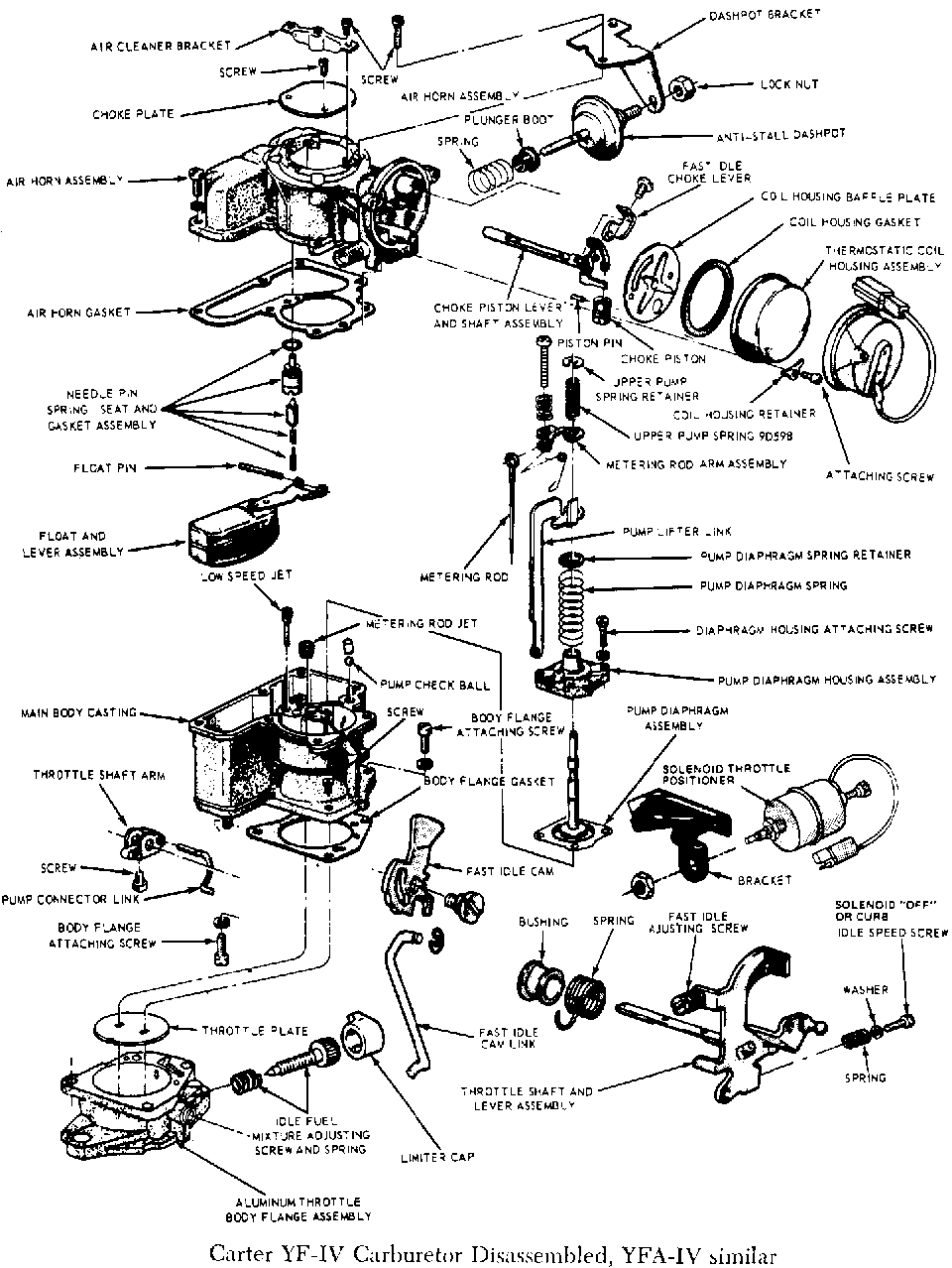

Carter carburator #1


Carter carburator #2


Points distributor

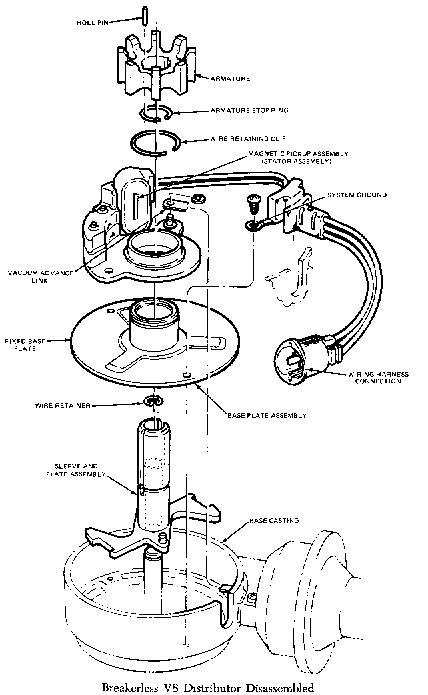

Electronic distributor

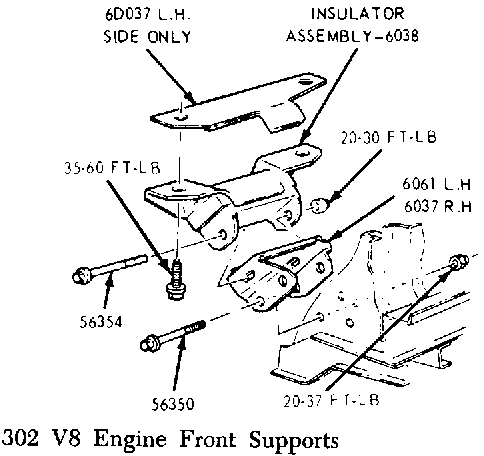

V8 engine frame mounts


6 cyl engine frame mounts

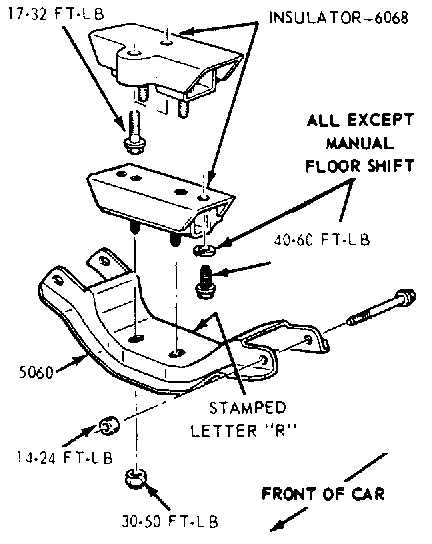

Transmission crossmember - V8

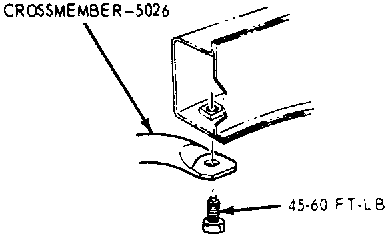

302 engine crossmember
